XSR700 Legacy Promotions
Model Description
Pure honest fun

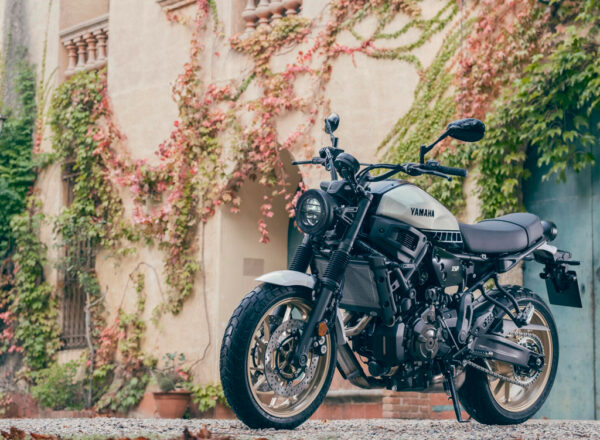

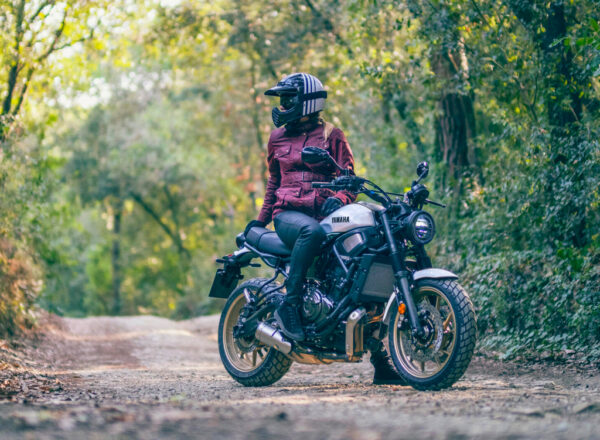

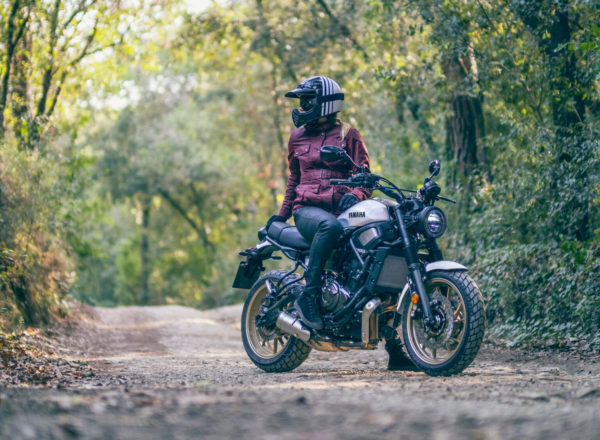

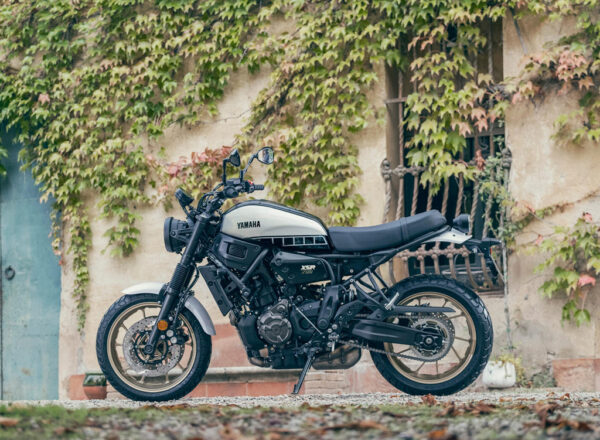

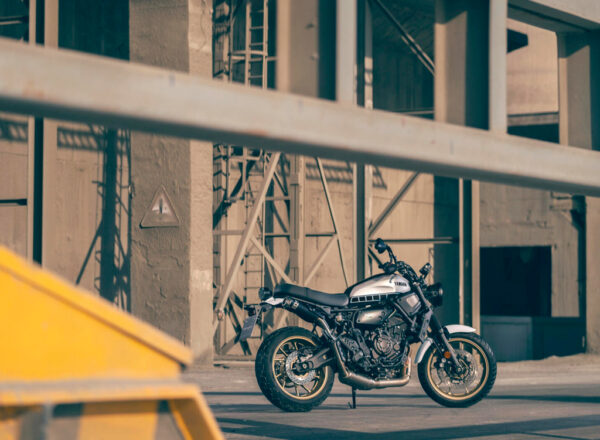

Featuring timeless scrambler looks inspired by some of Yamaha’s most iconic machines from another era, the XSR700 Legacy is the kind of motorcycle that makes you feel very special on every ride. And behind its classic persona you’ll discover the very latest engine and chassis technology that’s ready to deliver truly thrilling performance.
By creating an alternative style of bike that blends retro style with modern technology, Yamaha XSR models give you the opportunity to ride your own way. With its wide braced handlebars and round lights – as well as unique colours and block pattern tyres, this compact Sport Heritage bike will be the centre of attention.
XSR700 Legacy is great to look at – and even better to ride! The beating heart of this charismatic modern retro is Yamaha’s iconic 690cc CP2 engine that punches well above its weight to give amazing acceleration. And the combination of a compact tubular chassis with plush suspension and block pattern tyres gives outstanding agility and roadholding on the street and gravel.
Colours
– Speedblock Silver
Details
- Top-class look & feel
- Timeless style, up to the minute technology
- Light, compact and agile
- Best-selling torque-rich engine
- Light and slim tubular backbone frame
Generate a Finance Quote
New bike finance is calculated off the models paint colour or finish, please select your desired colour below to return a more accurate finance quote.
Model Specification
-
Engine
Engine Type
4-stroke, 2-cylinder, Liquid-cooled, DOHC, CP2, 4-valves
Displacement
689cc
Bore x Stroke
80.0×68.6 mm
Compression Ratio
11.5:1
Maximum Power
54.0kW(73.4PS)/8750r/min
Maximum Torque
67.0N·m(6.8kgf·m)/6500r/min
Starter System
Electronic ignition (TCI)
Transmission
Constant Mesh, 6-speed
Lubrication System
Wet sump
Clutch Type
Wet, Multiple Disc
Ignition System
Electronic ignition (TCI)
Final Transmission
Chain
Fuel Consumption
4.3 L/100 km
CO2 Emissions
100 g / km
Fuel System
Fuel Injection
-
Dimensions
Oil Tank Capacity
3.00 L
Fuel Tank Capacity
14 L
Length (mm)
2,075 mm
Width (mm)
865 mm
Height (mm)
1,120 mm
Wheel Base (mm)
1,405 mm
Weight (kg)
Ground Clearance (mm)
140 mm
-
Frame
Front Tyre
120/70 ZR 17M/C(58W) Tubeless
Rear Tyre
180/55 ZR 17M/C(73W) Tubeless
Frame
Diamond
Caster Angle
24°30′
Trail
90 mm
Front Suspension System
Telescopic fork
Rear Suspension System
(Link type suspension), Swingarm
Front Travel
130 mm
Rear Travel
130 mm
Front Brake
298 mm
Rear Brake
245 mm
5 based on votes
Yamaha
2023 XSR700 Legacy
£
8910.00
Available in Stock
