Model Description
Escape and Explore

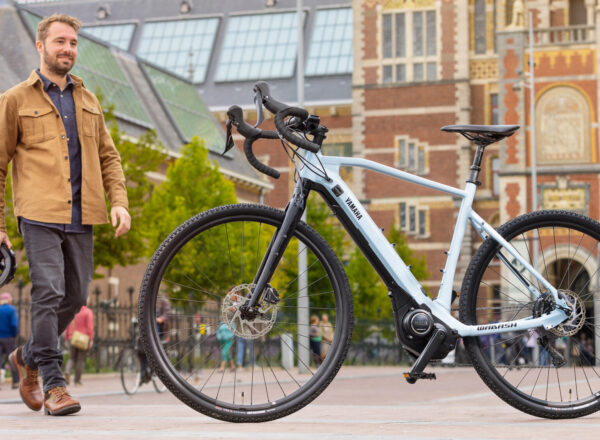

Stylish, versatile and functional, the Wabash is a new kind of gravel eBike from Yamaha that’s designed to perform well on everything from city streets through to countryside trails. Featuring a sleek chassis with easy ergonomics – and equipped with the best-selling PW-ST drive unit – Wabash RT is ready to give you as much fun and freedom as you desire.
Everything about this quality eBike is designed to ensure that you get the most enjoyment out of every journey. The beautifully styled frame features new school geometry that gives a confident and comfortable ride with lightweight handling on the tarmac and gravel. And the dropper post gives between 40mm – 60mm* of suspension for added comfort on the trail. *40mm small frame, 60mm medium and large frames.
Producing 70Nm of torque, the ultra-quiet Yamaha PW-ST drive unit is equipped with sophisticated technology that provides the appropriate level of assistance to give you a totally natural ride. Zero cadence technology provides instant power as soon as you start to pedal – and the Display A interface provides easy to understand information.
Model Specification
-
Other
Promotion
Drive Unit
Yamaha PWSeries ST 3-bolt Mount
Display/Remote
Display A
Fork
One-Piece Aluminum. 12x100 mm Thru-Axle. Fender and rack compatible. Internal brake hose routing
Rear Shock
N/A
Headset
Integrated bearing with 30 mm of spacers
Stem
31.8 clamp dia. 6 deg rise S-80 mm, M-90 mm, L-100 mm
Grips
N/A
Rear Derailleur
Shimano, GRX RX812
Chainrings
Shimano GRX 44t
Chain
KMW e11 TURBO EPT
eBike Class
Pedal Assist
-
Performance
Battery
Yamaha Lithium Ion 500Wh, 36V, 13.4Ah
Max Speed with Assist
25km/h
Shifters
Shimano GRX 11-speed RX600
Cassette
Shimano CS-M7000 11-42t 11-Speed
-
Frame
Frame Technology
Yamaha Hydroformed Aluminum. Integrated battery. Water bottle boss. Internal shift/brake hose routing
Handlebar
Flare Drop. 31.8 dia. 46 cm c-c “width at hood”, 58 cm c-c “width at drop”
Saddle
Yamaha Off-Road Cro-Mo Rail
-
Dimensions
Seatpost
Limotec, dropper seatpost, dia: 30.9 mm length: 295 mm Travel: 40 mm (S), 60 mm (M,L)
Crankarm
Alloy crank 165 mm/S, 170 mm/M&
Total Weight
21.4 kg
Wheel Size
700 c
-
Brakes
Brakes
Shimano GRX RX400 front/rear
-
Wheels
Wheels
Dual Channel Welded Pin w/ Eyeleted Spoke, External Rim Width=25 mm Front: 12x100mm Quick-Release Thru-Axle (QRTA) Rear: 12x142 mm QRTA
Tyres
Maxxis Rambler 700 x 45c TR EXO 120tpi
5 based on votes
2023 Wabash RT
£
3100.00
Available in Stock
